House wiring with Inverter
Learn house wiring with inverter connection, including AC supply, battery, inverter, MCBs, and load circuits for uninterrupted backup power during outages.
inverter distribution board wiring
House wiring with an inverter connection guarantees a continuous power supply when there is no power supply in the mains. The appliances should be properly integrated with the distribution board, MCBs, and earth connection as a backup source of reliable electricity.
inverter to home wiring connection
House wiring with inverter connection is an explanation of how the use of a backup inverter system can be incorporated into residential electrical wiring. The primary AC supply is found on the distribution board behind a main MCB. The inverter is connected to the DB through an automatic changeover switch or a manual bypass in order to avoid backfeed. Batteries drive the inverter, and its output is fed to vital loads via independent branch MCBs. The DB bus bars have neutral and earth connections properly connected to neutral and earth, respectively. Whether the main intent is to fail, the inverter will supply electricity to the circuits of choice, so that lights, fans, and other vital appliances will not be affected. Testing would be done by putting it into inverter mode and checking the battery and inverter output as well as sending power safely to branch circuits. The correct installation of inverter wiring not only keeps the home and inverter safe but also eliminates the chances of electrocution, ensuring a solid backup power supply during outages.
Work & Installation (Input โ Output Summary)
- AC Main Supply enters distribution board through main MCB.
- Inverter Output connects to DB via manual or automatic changeover switch.
- Batteries power the inverter when mains fail.
- Branch MCBs feed selected essential loads like lights, fans, and appliances.
- Neutral and Earth are properly connected to DB bus bars.
- Proper wiring ensuresProper wiring ensures no back-feed to mains, safe power switching, and uninterrupted electricity.
Testing & Final Adjustments
- Verify all wiring: AC mains, inverter, batteries, MCBs, and DB connections.
- Test inverter operation by simulating mains failure; ensure selected circuits receive power.
- Check battery voltage and inverter output stability.
- Verify MCBs trip correctly in overload or short-circuit conditions.
- Inspect neutral and earth connections for proper grounding.
- Test changeover switch operation (manual or automatic).
- Check inverter to DB polarity: line and neutral must be correct.
- Ensure essential circuits are only connected to the inverter backup.
- Test multiple ON/OFF cycles to confirm reliable switching.
- Document wiring diagram, inverter capacity, and battery specs for maintenance reference.
Frequently Asked Questions - House wiring with Inverter:
What is house inverter wiring?
Connection of inverter to home distribution board for backup electricity during mains failure.
Why use a changeover switch?
To safely switch between mains supply and inverter without back-feed.
Can all home circuits run on inverter?
No, usually only essential loads are connected due to inverter capacity limits.
Is earthing required?
Yes, proper grounding protects the inverter and home wiring from shocks.
How to connect battery to inverter?
Follow inverter manual; ensure correct polarity and secure connections.
Can this work with single-phase supply?
Yes, most residential inverters are single-phase compatible.
How to test inverter wiring?
Switch off mains, run inverter, check essential circuits receive power safely.
Do I need separate MCBs for inverter circuits?
Yes, to protect individual circuits connected to inverter output.
What if inverter overloads?
Branch MCBs will trip; reduce load to prevent damage.
Can I use automatic inverter switch?
Yes, ATS allows seamless switching during mains failure.
Related Posts
single phase ampere meter connection
Learn how to install an ampere meter wiring diagram with input, output, CT connection, and testing for safe current measurement in a home or industry.
Automatic power changeover for 3-phase
Learn ATS panel automatic wiring for seamless generator changeover, including relays, contactors, MCB/fuse, and safe load transfer.
Single Phase split AC indoor-outdoor
Learn air conditioner wiring diagram with step-by-step guide for safe installation, including power supply, MCB, earth connection, and indoor-outdoor unit wiring.
4 Gang Switch Connection
Learn house wiring for a 4-gang switch and socket connection with step-by-step diagrams, installation, working principle, and testing for safe home electrical setup.
Electrical Relay Wiring
Learn pulse relay connection wiring with switch control. Step-by-step guide to connect input, output, and load for safe electrical installation.

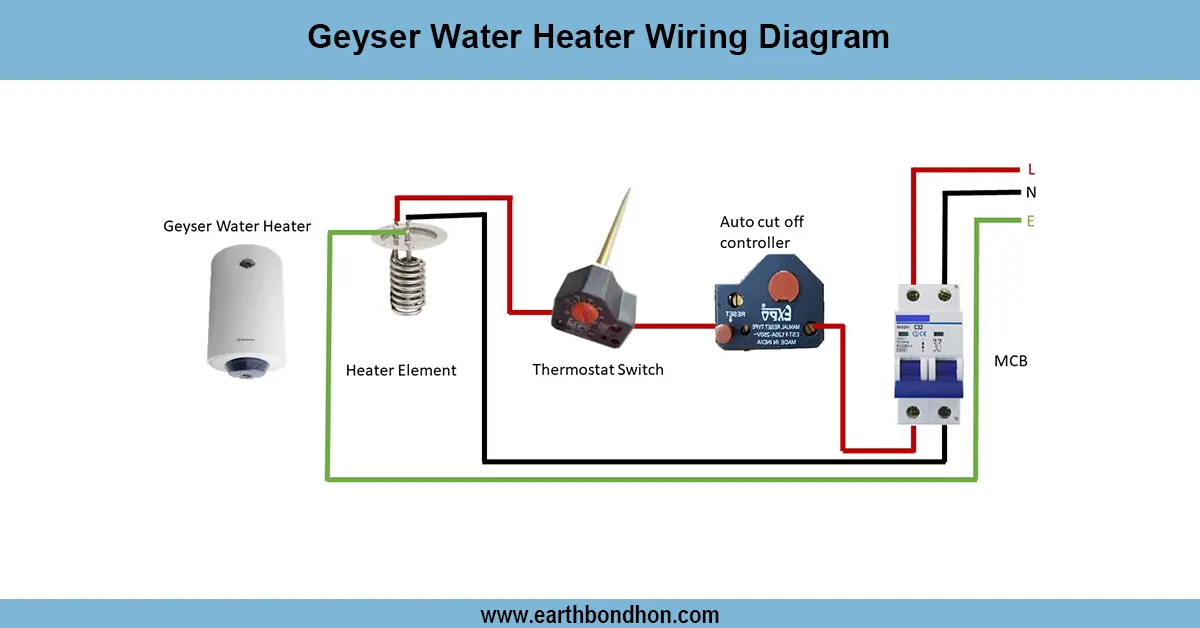

Geyser Wiring Diagram
