MCB Changeover Switch Wiring
Learn single-phase MCB changeover switch wiring to safely switch between mains and generator, protecting home circuits and ensuring uninterrupted power.
residential MCB switch connection
MCB changeover wiring is single-phase to allow transfer between mains and generator without leakage. The source can power the home circuits only one at a time, guarding against back-feed and appliance protection.
single-phase distribution wiring

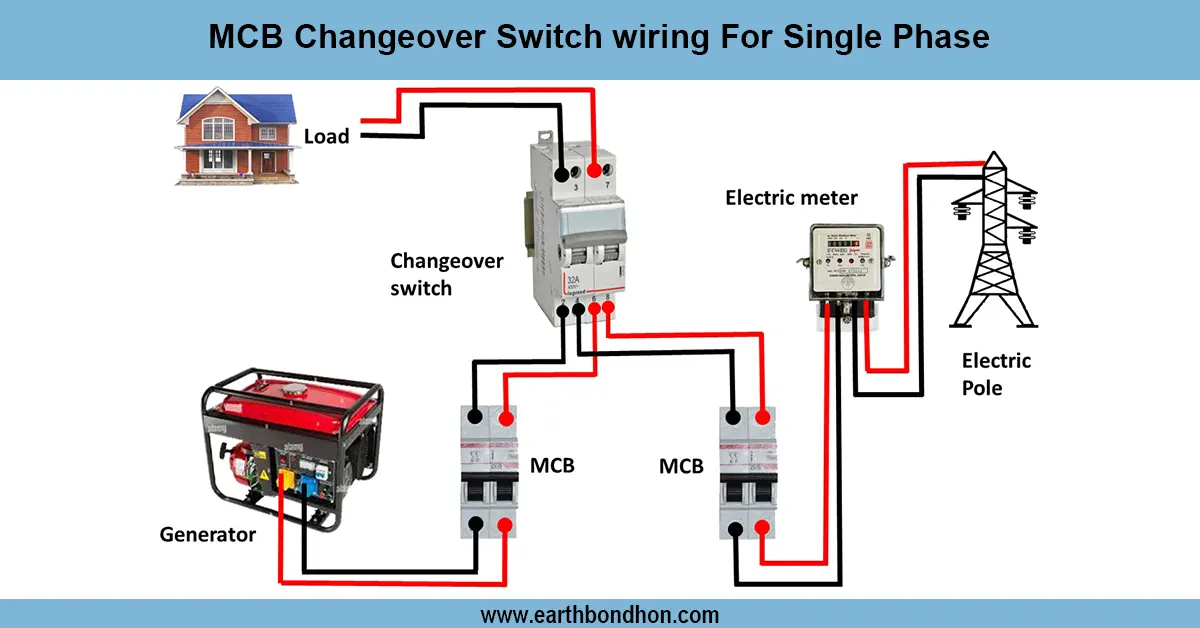

Single-phase supply changeover switch wiring, MCB changeover switch wiring enables mains to generator and generator to mains switches to be made safely through an MCB used to protect circuits. The supply mains are connected to one input of the MCB changeover switch, and the other input is connected to the generator output. The home distribution board is fed from the switch output. The neutral and earth connections are properly connected. The MCB will protect against short circuits and overloading. When switching, the equipment will not be back-fed or damaged as only one of the sources (mains or generator) is active. Testing entails ensuring that the mains and the generator change over smoothly, that the load is being powered accordingly, and the MCB is working well under overload. This is a vital wiring configuration of single-phase residential backup systems that provide a reliable and safe power supply during an outage.
Work & Installation (Input → Output Summary)
- Connectmains supply to one input terminal of the MCB changeover switch.
- Connectgenerator output to the other input terminal.
- Connect theoutput of the switch to the home distribution board.
- Ensure properneutral and earth connections neutral and earth connections at the DB.
- Switch manually between mains and generator to supply power safely.
- MCB protects circuits against overload and short circuits.
Testing & Final Adjustments
- Verify all wiring connections: mains, generator, MCB changeover switch, and distribution board.
- Test switching from mains to generator; ensure load receives power safely.
- Switch back to mains; confirm smooth operation without tripping MCBs.
- Inspect neutral and earth continuity for safety.
- Check that MCB trips correctly under overload or short-circuit conditions.
- Perform multiple switching cycles to ensure reliability.
- Label mains and generator lines clearly at the switch.
- Ensure appliances are not damaged during switching.
- Confirm only one source energizes circuits at a time.
- Document wiring and testing results for maintenance and reference.
Frequently Asked Questions - MCB Changeover Switch Wiring:
What is an MCB changeover switch?
A switch that allows safe manual selection between mains and generator using an MCB for protection.
Why is it necessary?
To safely transfer power without back-feed and protect home appliances.
Where is it installed?
Between mains, generator, and home distribution board.
Is MCB required?
Yes, for protection during switching and against overload.
Can it be used for single-phase supply?
Yes, this setup is specifically for single-phase systems.
How to connect generator to home?
Generator output connects to the changeover switch input, then output goes to DB.
Is earthing required?
Yes, for safety and proper operation of home circuits.
How to test the wiring?
Switch between mains and generator and verify load operation and MCB function.
Can all circuits run on generator?
Depends on generator capacity; connect essential circuits if limited.
Does it prevent simultaneous supply?
Yes, only one source is active at a time, preventing back-feed.
