3 Phase SPD Connection

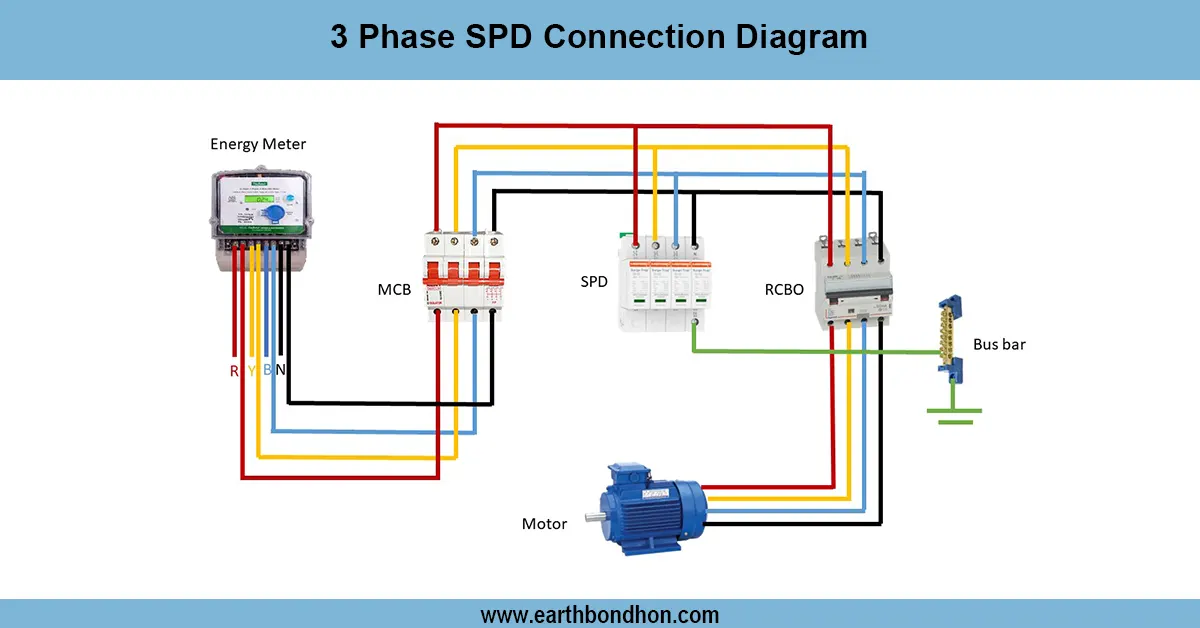

Detailed 3 phase SPD connection diagram showing how to wire surge protection devices to safeguard electrical systems from transient overvoltages.
3 phase electrical protection
A 3 phase SPD connection are wired aesthetic surge protection devices on each of the 3 phases and divert unfortunate surges safely to ground protecting electrical equipment against damage caused by transient surges.
electrical simulation DOL starter
To safely start a 3-phase motor at full voltage, a DOL (Direct-On-Line) starter is employed. The control circuit is normally equipped with start and stop push buttons, a contactor coil, and an overload relay. Wiring includes the connection of the main supply to the DOL starter, passing through the overload relay and the contactor coil through the push buttons. When the start button is pressed, the contactor is energized, which closes the main contacts and provides full voltage to the motor. When the stop button is released or the overload situation occurs, the contactor is de-energized, and the motor is started. Simulation enables users to have a feel of the logic of motor control, interloc, and protection without linking a real motor. It is also extensively applied in industrial, educational systems, where it is used to ensure the safe operation of motors. Labeling and insulation are done correctly so that there is a correct interpretation during simulation and real use.
Work & Installation Summary
- Connect incoming 3-phase supply to the main terminals of the DOL starter.
- Connect overload relay in series with the contactor coil.
- Wire start push button in parallel with the holding contact of the contactor coil.
- Wire stop push button in series with the contactor coil for emergency stop.
- Connect contactor main contacts to motor terminals.
- Ensure proper phase, neutral, and earth connections.
- Label start, stop, overload, and motor terminals.
- Mount components securely in a panel or simulation board.
- Test simulation by pressing the start and stop buttons.
- Verify overload relay trips correctly under simulated overcurrent.
Testing & Final Adjustments
- Check continuity of the control circuit from the supply to the contactor coil.
- Test start button energizes the contactor and runs motor in simulation.
- Press stop button to de-energize contactor and stop motor.
- Simulate overload condition to ensure overload relay trips correctly.
- Verify holding circuit maintains contactor coil after start button is released.
- Check wiring for correct phase sequence and insulation.
- Ensure all connections are labeled and organized for learning purposes.
- Observe simulated motor response under control actions.
- Repeat tests multiple times to ensure reliability.
- Document wiring diagram and operational results for educational reference.
Frequently Asked Questions - 3 Phase SPD Connection:
What is an SPD?
A Surge Protection Device protects electrical systems from transient voltage surges.
Why is SPD important in 3 phase systems?
It prevents damage to equipment from voltage spikes on all phases.
Where should SPDs be installed?
Near the main distribution board for maximum protection.
How is SPD connected in a 3 phase system?
Connected across L1, L2, L3, neutral, and earth.
Is grounding necessary for SPD?
Yes, proper grounding is essential for effective surge diversion.
Can SPD protect against lightning strikes?
It helps protect against surges caused by lightning but not direct strikes.
How often should SPD be checked?
Regularly as per manufacturer recommendations to ensure functionality.
Can SPD be used in residential systems?
Yes, especially in areas prone to lightning or electrical disturbances.
What happens if SPD fails?
It may not protect equipment from surges, increasing risk of damage.
Does SPD reduce electricity consumption?
No, it protects equipment but does not affect power usage.
