Emergency stop Button switch wiring
Learn emergency stop switch wiring to safely interrupt power to motors or machines during emergencies, ensuring operator safety and equipment protection.
industrial emergency stop circuit
Emergency stop button wiring Emergency stop button wiring provides a means by which machines or motors may be disconnected instantly in case of an emergency. The correct connection to control circuits or safety relays will guarantee the rapid shutdown and avoid accidents.
emergency stop button wiring diagram
Emergency Stop (E-Stop) button wiring diagram demonstrates the application of a normally closed push-button switch to switch the power off to machinery or motors instantly in the case of an emergency. The E-stop is linked in series with the contactor coil or control circuit, and pressing the button will de-energize the coil, which will instantly stop the machine. Safety relays can be used as redundancy and to conform to safety standards in the case of an E-stop in an industrial installation. There are line and neutral connections, a push button, a contactor coil, and optional indicator lamps. Correct wiring will reduce the speed of shutdown, safety of the operators, avoid mechanical damage, and adhere to the safety requirements. Testing is done by pressing the E-stop to make sure that the load disconnects and also resets properly. Emergency stop switches are very popular in industrial motors, conveyor systems, presses, and automated machinery.
Work & Installation (Input → Output Summary)
- Control Circuit receives supply through the E-stop switch (normally closed).
- Contactor Coil or Safety Relay is connected in series with E-stop switch.
- Pressing E-Stop opens the circuit, de-energizing the coil and stopping the motor or machine.
- Resetting the Switch allows the circuit to be energized again.
- Optional Indicator Lamps show E-stop activated or circuit interrupted.
- Proper wiring ensures instant power disconnection, machine safety, and compliance with industrial safety standards.
Testing & Final Adjustments
- Inspect all wiring connections: line, neutral, push button, contactor coil, and indicator.
- Test the machine with E-stop in normal position; the machine operates normally.
- Press E-stop; the machine or motor should stop immediately.
- Verify indicator lamps illuminate if used.
- Reset E-stop; the machine should resume operation safely.
- Inspect terminals for secure and insulated connections.
- Test multiple E-stop activations for reliability.
- Ensure wiring complies with industrial safety standards.
- Check for no inadvertent tripping during normal operation.
- Record testing results for maintenance and safety documentation.
Frequently Asked Questions - Emergency stop Button switch wiring:
What is an emergency stop button?
A push-button switch that immediately stops a machine or motor when pressed.
Why is it important?
Ensures operator safety and prevents machine damage during emergencies.
How is it wired?
Normally closed switch in series with contactor coil or safety relay.
Can it be used for motors?
Yes, commonly used for industrial motors, presses, and conveyors.
Is indicator lamp necessary?
Optional, but shows E-stop activation or circuit interruption.
How to test the E-stop?
Press the button to see if machine stops immediately and resets correctly.
Can multiple E-stops be used?
Yes, wired in series to control the same safety circuit.
Does it require safety relays?
Recommended for redundancy and compliance with safety standards.
Can it prevent accidental starts?
Yes, pressing E-stop disconnects power completely.
Is earthing needed?
Yes, for safety in industrial electrical systems.
Related Posts
single phase pump wiring Diagram
Learn control one-way switch water pump wiring diagram with input-output connections, safe installation, and testing guide for smooth pump operation.
Day Night Light Sensor Switch Circuit
Learn how to wire a day night light sensor switch for automatic lighting control. Save energy and improve convenience with this simple guide and diagram.
8 Pin Timer Relay Wiring Diagram
Understand 8-pin timer relay wiring with easy diagrams. Learn pinout, connection steps, and functions. Perfect for electricians and electronics hobbyists.
3-phase Motor Works
Learn how 3-phase motors work, including wiring, star-delta starting, rotation, protection, and operation principles for industrial and commercial applications.

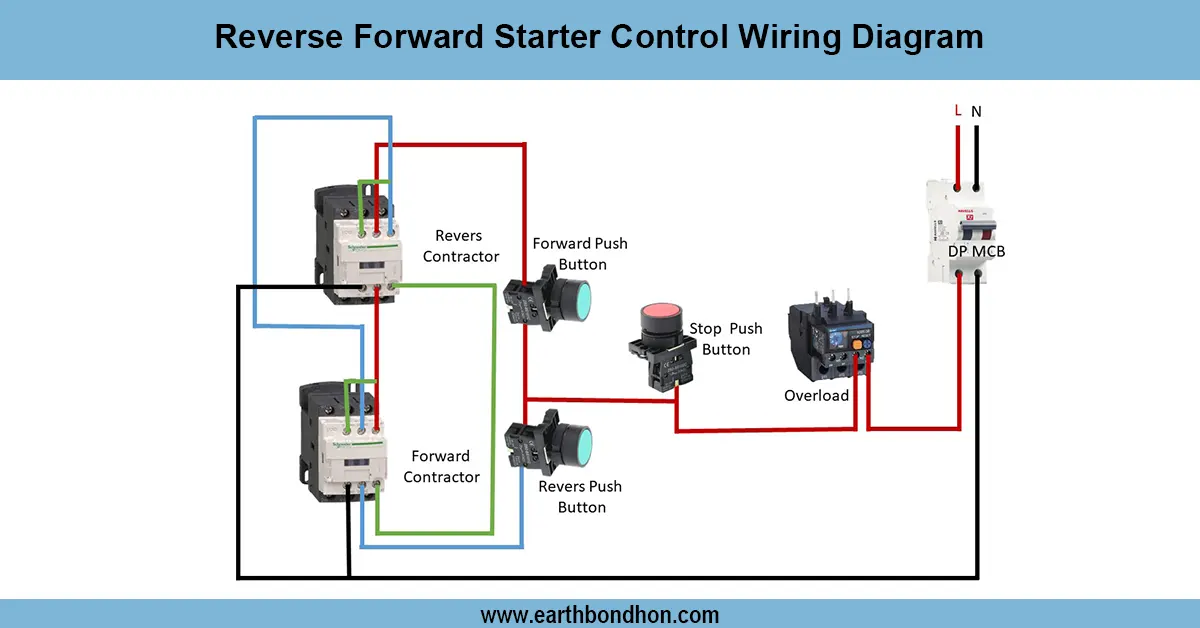

Reverse-Forward Starter Control Wiring Diagram
