auto cut-off 12v Battery Charger
Learn a 12V auto cut-off battery charger circuit that charges safely and stops at full voltage. Includes schematic, parts, installation, and testing steps.

automatic battery charger 12v circuit
A 12 V auto cutoff charger uses a comparator/reference to monitor battery voltage and use a MOSFET or relay to disconnect the charger when a battery reaches a set voltage, and may then float the battery at a low voltage.
charger with voltage cutoff 12v
A 12V auto cut-off battery charger is a charging circuit that provides a current flow to a 12V lead-acid or SLA battery and switches and cuts off to float mode when the battery reaches the predetermined full-charge voltage (usually 13.6–14.4V depending on the battery type). This is normally built with a voltage-sensing comparator (LM324/LM358), an adjustable reference (zener or precision reference), a switching element (MOSFET or relay) to prevent charging, an indicator, and a current-limiting resistor or constant-current stage. Newer models introduce temperature compensation and soft start to increase the life of the battery. This charger can avoid excessive charge, gassing, and minimize maintenance- it can be used with car batteries, solar battery banks, UPS, and small off-grid systems. The ability to select a proper transformer/adapter, heat dissipation, and protection with fusing is the warranty for safe and reliable functioning.
Work / Installation (Inputs → Outputs)
Input: AC mains → transformer/SMPS → rectifier & filter → current limit stage → comparator control → switching device → battery.
- AC mains (or DC adapter) is stepped to ~15–18V AC (or supplied by suitable SMPS).
- Rectify (bridge) and filter to obtain DC (~18–20V unloaded).
- A current-limiter (resistor, or better: constant current regulator / CC stage) controls charge current (e.g., 0.1C–0.3C).
- A voltage-sensing comparator monitors battery voltage; reference set to cutoff (e.g., 14.4V for lead-acid).
- When measured voltage ≥ cutoff, comparator drives MOSFET/relay to disconnect charge or switch to float-mode regulator (~13.6V).
- Indicators (LEDs) show CHARGING / FULL; optional reverse polarity protection and fuse on input.
Output: Battery receives safe, limited-current charge and is automatically disconnected or held at float voltage when full.
Testing & Final Adjustments
Check no-load voltages. Before connecting a battery, check rectified DC no-load output voltages: measure rectified DC, and make the comparator reference adjustable. Install the fit input fuse and utilize a bench power supply/current-limited source during initial tests. Connect a discharged battery and measure the current of charge: This must be within the specifications (e.g.,1 3 A at charger rating). Watch the increasing voltage of the battery. When it goes to the cutoff setpoint (adjustable pot), be sure that the MOSFET/relay closes and the charging current is reduced to almost zero or floats. Characteristics of thermal behavior of MOSFET/heatsink with prolonged charging. Test reverse polarity and short-circuit. To be reliable in the long term, test at varying temperatures (or add a temp sensor) and vary the cutoff of battery chemistry: bulk charge =~14.4V, float = 13.6 -13.8V. And lastly, check LED indicators and safety cutouts (fuse, thermal limits). Label the charger and settings of the document.
Frequently Asked Questions - auto cut-off 12v Battery Charger:
What is a 12V auto cut-off charger?
A charger that automatically stops charging when a 12V battery reaches a preset full voltage.
What cutoff voltage should I use?
For lead-acid batteries typically 14.2–14.6V for bulk charge and 13.6–13.8V for float.
Can I charge a car battery with it?
Yes, if the charger current rating and cutoff settings match the battery type.
What components are used for auto cutoff?
Comparator (LM358/LM324), reference (zener/precision), MOSFET or relay, current limit stage, and filters.
Is float charging supported?
Good designs switch to float mode to maintain battery at a safe lower voltage after full charge.
How to set charge current?
Choose current by design (resistor or CC stage) usually 0.1C–0.3C for lead-acid; use current limiting/regulation for accuracy.
Do I need temperature compensation?
Recommended: leads acid batteries need lower cutoffs at higher temperatures—temp sensor improves longevity.
What safety features are essential?
Input fuse, reverse polarity protection, thermal management, and overcurrent protection.
Can I use an SMPS instead of a transformer?
Yes, using a regulated SMPS (≥ charger power) improves efficiency and reduces heat.
Is a relay or MOSFET better for cutoff?
MOSFETs offer silent, fast switching and lower loss; relays provide galvanic isolation but wear mechanically.
Related Posts

3.7v battery level indicator circuit
A simple 3.7V battery level indicator circuit using LEDs to monitor charge status for lithium-ion batteries. Ideal for DIY electronics and portable devices.

BC557 Transistor Project
Explore BC557 transistor projects for DIY electronics. Build amplifiers, switches, or LED control circuits using this PNP transistor in simple setups.

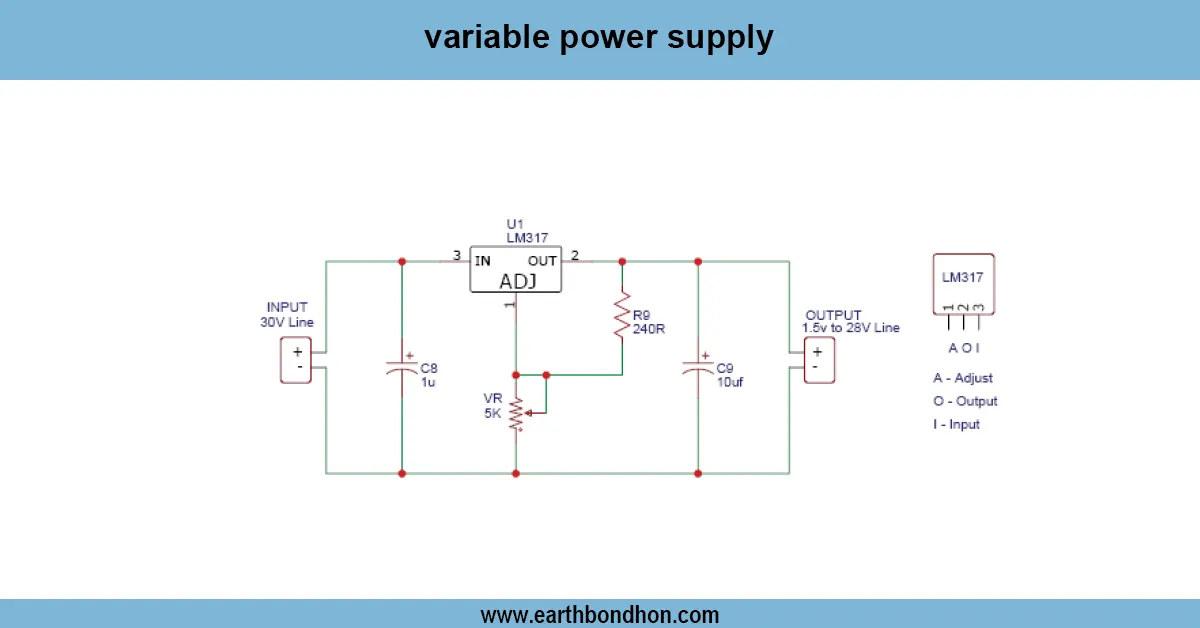

Variable Power Supply using LM317
A variable power supply provides adjustable voltage output for electronics testing and DIY projects, allowing safe and precise control from 1.25V up to the input voltage limit.

12V to 5V Converter
Learn how a 5V voltage regulator circuit works, circuit diagram, applications, and how to regulate 12V or higher voltage down to stable 5V DC for electronics.

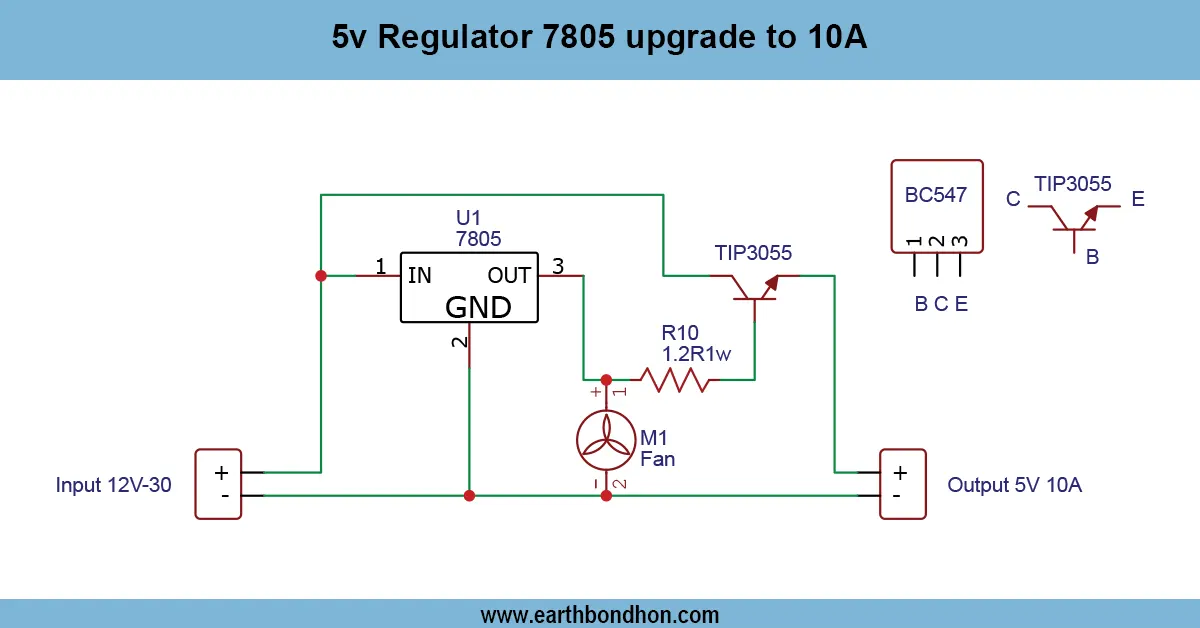

5v Regulator 7805 Upgrade to 10a
