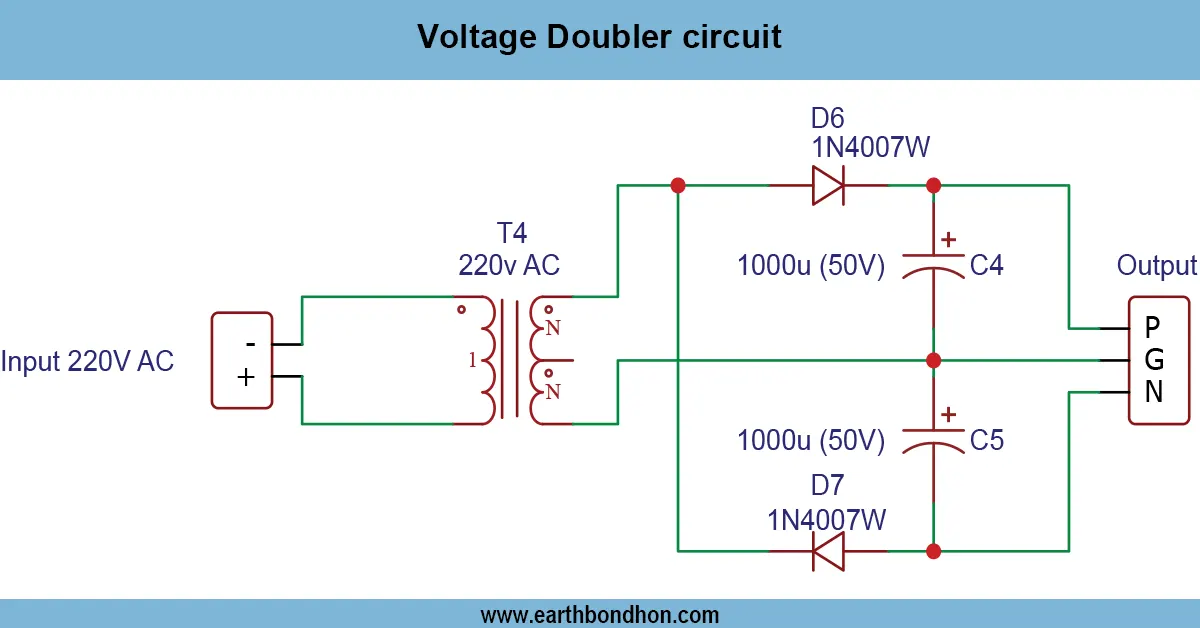

Voltage Doubler Circuit
A voltage doubler circuit converts input voltage into nearly double using diodes and capacitors, ideal for electronics projects needing higher DC voltage.
Half-wave voltage doubler:
A voltage doubler circuit is an electronic circuit that magnifies the input voltage to almost twice that of the input to produce a larger DC voltage without a transformer. It is usually applied with diodes and capacitors, in either half-wave or full-wave form. Capacitor Charging Capacitors accumulate voltage when an AC voltage is applied, and de-accumulate voltages as it is discharged, doubling the output. Voltage doublers find extensive use in low-power applications e.g. to power small electronics, to power vacuum tubes or in DIY projects to increase supply voltage. They are easy and inexpensive, but do not add to current capacity, hence load choice needs to be equal to circuit capacity. Well-designed operation guarantees the efficiency of operation, minimal ripple, and consistent voltage enhancement.
Low-cost voltage doubler:
An electronic circuit that transforms an input voltage to a more or less doubled value is known as a voltage doubler circuit and is useful when a higher DC voltage is needed than what an available AC or DC source can provide. Voltage doublers are usually based on a combination of diodes and capacitors in a half-wave or full-wave derivative. When AC current is used, the capacitors fill and empty in a chain that is essentially a stacking of the voltage which results in an output that is approximately twice the input. Voltage doublers have common applications in low power (i.e. powering a vacuum tube, in a small electronics project, or in improving the supply voltage to a circuit without a transformer). They provide a very small, low-cost way of getting higher voltages. Diodes and capacitors are to be properly selected in order to assure efficient functioning and output stability. Although voltage doublers do not raise current, they do raise voltage, and therefore, the load should be carefully selected. A voltage doubler circuit, designed and assembled correctly, offers a simple and effective way to step up a voltage to a variety of electronics uses.
⚡ Work & Installation (Input → Output):
The operation of the voltage doubler circuit is in charging capacitors in alternate half-cycles of the AC cycle or controlled diode conduction in DC operation. In a half-wave doubler, the voltage of the output is effectively summed up in a capacitor, one filling during the positive half-cycle and the other during the negative half-cycle. Full-wave doublers incorporate more diodes to make them more efficient and less rippled. Installation The diodecapacitor network may be connected to the input ac or pulsating DC, and the output leads to the load. Input voltage should be at least the same as capacitor ratings or above, higher capacitor ratings should be used, and diodes should be able to dissipate currents as large as expected. We have a small and inexpensive voltage doubler whose use should be limited to its current capacity to avoid dropping of the voltage, or the stress of the capacitor. It is a suitable circuit to use in the DIY electronics, hobby projects or to make sure that it is used in applications where moderate voltage boosts are needed without transformers.
Testing & Final Adjustments:
Once the voltage doubler circuit has been assembled, connect a low AC or pulsating DC input to the circuit, and measure the output voltage at a multimeter. In the case of a half-wave doubler, the output must be approximately two times that of input RMS voltage, whereas full-wave designs have somewhat improved regulation and reduced ripple. Ensure that capacitors are polarized and that diodes are facing the right direction in order to prevent short circuiting. To avoid damaging delicate electronics, a dummy load should be used in the first stages of testing, e.g. resistors. Note the load voltage and make sure it is constant, tend values of capacitor as required to minimize ripple. Provide current and voltage to ensure the circuit elements have the capacity to endure the anticipated voltage and current so as to avoid heat generation and failure. After validation, the voltage doubler circuit is useful to supply a DC voltage that is higher than that of small electronics, vacuum tubes, LED drivers and hobbyist projects. Proper assembly, choice of components, and testing have led to a small, low priced and dependable way of doubling voltage to use in numerous applications.
Frequently Asked Questions - Voltage Doubler Circuit:
What is a voltage doubler circuit?
A circuit that increases input voltage to nearly double using diodes and capacitors.
What components are needed?
Diodes, capacitors, AC or DC input source, and load connections.
How does it work?
Capacitors charge and discharge alternately through diodes to stack voltages.
What voltage can it provide?
Approximately twice the input voltage depending on circuit design.
Is it suitable for high current loads?
No, voltage doublers are typically for low-power applications.
What types exist?
Half-wave and full-wave voltage doublers.
Can it be used for AC or DC input?
Yes, AC or pulsating DC inputs can be doubled using this circuit.
Do capacitors need high voltage rating?
Yes, capacitors must exceed the input voltage to prevent failure.
Is it suitable for DIY projects?
Yes, it’s widely used in hobby electronics and small lab setups.
Can ripple be reduced?
Yes, using larger capacitors or full-wave configurations improves stability.
