voltmeter connection circuit diagram
Learn voltmeter wiring diagram installation with input-output, parallel connection, safe setup, and testing for accurate voltage measurement in circuits.

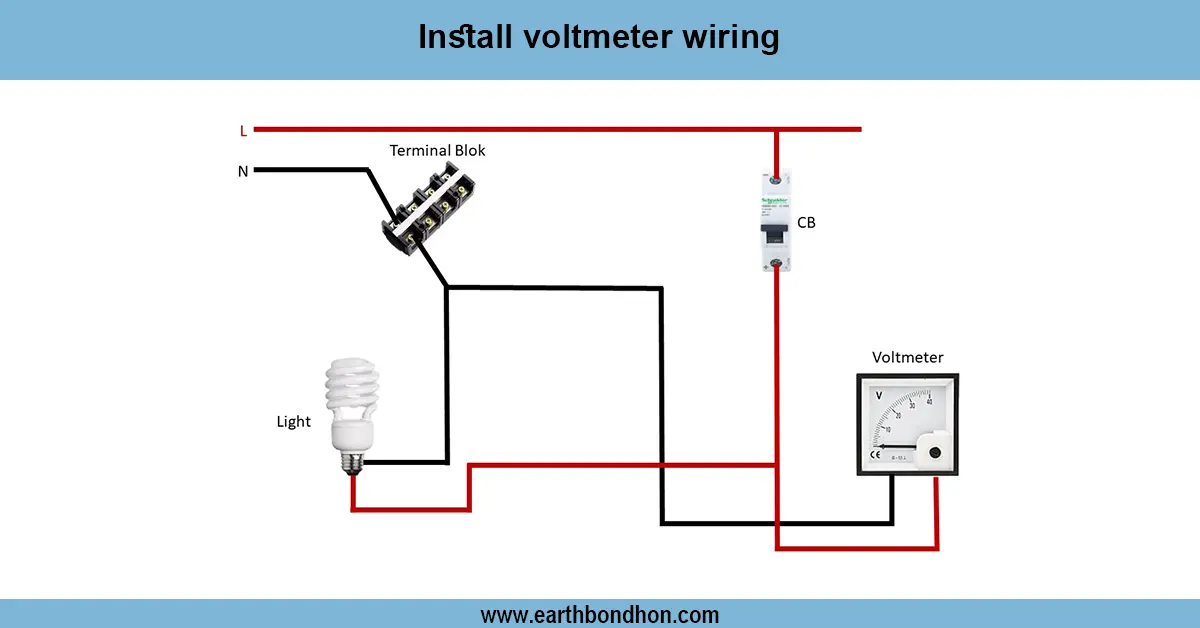

voltmeter connection diagram single phase
Install voltmeter wiring by making the voltmeter wiring run parallel to the load to ensure that the voltmeter measures the voltage correctly and that it is safe and well insulated.
voltmeter parallel connection wiring
A voltmeter wiring diagram displays the steps to measure voltage across electrical loads. To measure the potential difference, voltmeters are paralleled to the load. In single-phase systems, the voltmeter terminal is connected to one end of a phase wire, and the other end of the voltmeter is connected to the neutral. Voltmeters can be phase-to-phase or phase-to-neutral in three-phase systems, depending upon the measurement needs. Proper installation gives accuracy to the readings, meter harms, and improves safety. Insulated wires must be available to make sure they are properly mounted in panels or switchboards, and to be mindful of the voltage ratings. Voltmeters come in control panels, industries, and homes to check the voltage levels.
Work / Installation (Inputs → Outputs)
Only when the main power has been turned off should you wire. In the case of a single-phase voltmeter, the phase wire should be connected to the positive or live terminal of the voltmeter. Join the negative to the neutral. Make sure the voltmeter rating corresponds to the voltage in the circuit. Install a voltmeter on the switchboard or panel. In the case of three-phase systems, pa phase-to-neutral or voltmeter across two phases may be connected according to the need. Check all connections, insulated, and tight. Do not run the voltmeter in series with the load because this will ruin the meter. Label the panel with voltmeter connections and voltmeter rating to identify it easily. Long-term reliability of wires and insulated connectors should be ensured.
Testing & Final Adjustments
Once it is installed, turn on the main supply and check the voltmeter reading. In the case of single phase, that should show the supply voltage. In three phases, verify phase-to-phase or phase-to-neutral voltages according to the connection. Test various loads and switch conditions to assure stability. Check terminals for loose connections, heating, or sparks. Compare the digital multimeter with other readings. Make the meter easy to read. Fix any wiring mistakes as they occur. Proper mounting and safe insulation require avoiding accidental contact and electrical hazards. Clip the voltmeter labeled with voltage range, phase, and mode of connection to enable it to be kept conveniently. Lastly, ensure that protective devices such as fuses or MCBs are operational to ensure safe use of the voltmeter in the electrical system.
Frequently Asked Questions - voltmeter connection circuit diagram:
What is a voltmeter?
A device used to measure the voltage across a load in a circuit.
How is a voltmeter connected?
Always connected in parallel with the load.
Can I connect a voltmeter in series?
No, connecting in series may damage the meter.
Where is voltmeter used?
In homes, industries, and control panels to monitor voltage.
What wire goes to voltmeter terminals?
Phase goes to positive/live, neutral goes to negative terminal.
Can I use digital or analog voltmeter?
Both can be used; ensure proper rating and wiring.
How to connect voltmeter in three-phase system?
Connect phase-to-phase or phase-to-neutral depending on measurement.
Is insulation important for voltmeter wiring?
Yes, it prevents accidental shocks and short circuits.
How to test voltmeter installation?
Compare readings with a multimeter and check stability.
Can voltmeter measure current?
No, voltmeter measures voltage; use an ammeter for current.
