4 Gang Switch Connection
Learn house wiring for a 4-gang switch and socket connection with step-by-step diagrams, installation, working principle, and testing for safe home electrical setup.
4 gang switch socket wiring
A socket-connected 4-gang switch provides the ability to independently control 4 lights as well as several power outlets. Phase comes in through switches, neutral directly to lamps and sockets.
house wiring 4 gang diagram

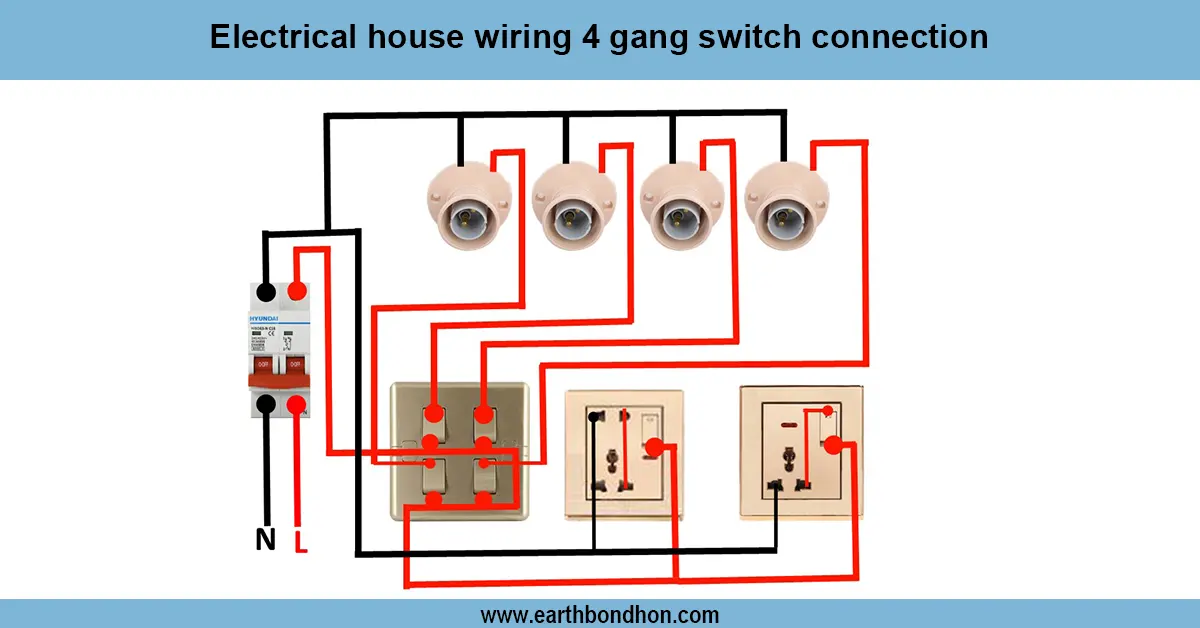

A house wiring 4-gang switch socket connection system will enable you to operate more lights and sockets with only one switch box. A 4-gang switch is typically a switch that is capable of controlling between four and eight separate lights or appliances, with sockets added as power outlets. The phase supply wire is wired to the common input of the 4-gang switch. The wires to each lamp lead out of each switch output terminal to the phase terminal of each lamp. The supply neutral wires are hard-wired to lamps and sockets. Switch frame, lamp body, and socket terminals are bonded to earth wires. It is a common wiring system in living rooms, kitchens, bedrooms, and offices. Wiring is correct so that lights can be controlled independently, sockets can be operated correctly, and electrical safety and efficiency upheld.
Work / Installation (Inputs → Outputs)
- Input: Line (phase) and neutral from supply.
- Output: Four lights connected to 4 gang switches and sockets connected to neutral and phase.
steps:
- Connect the phase wire from supply to the common input terminal of the 4 gang switch.
- Connect each switch output to the phase terminal of its respective light.
- Connect sockets in parallel with phase and neutral from the supply.
- Connect neutral wires directly to all lamps and sockets.
- Connect earth wires to the switch frame, lamp bodies, and socket terminals.
- Test each switch and socket individually to ensure proper operation.
Testing and Final Adjustments
Once wired, all terminals are to be tight and insulated. Switch ON the supply and test all switches to ensure that lamps are functioning properly. To ensure that all sockets are connected, test each socket using a small appliance. BE sure that earth connections are safe. Tie up any slack wiring and wrap bare wires. Numerous tests guarantee that the 4-gang switch operates all lights separately and sockets work under safe conditions. This will eliminate electrical hazards and also guarantee high-quality home wiring.
Frequently Asked Questions - 4 Gang Switch Connection:
What is a 4 gang switch socket connection?
It is a house wiring setup where a 4 gang switch controls four lights and sockets provide power outlets.
Where is it commonly used?
In living rooms, kitchens, bedrooms, and offices for multiple lights and sockets.
How many wires are required?
Phase wire to switch, output wires to lights, neutral to lights and sockets, earth wires for safety.
Does each switch operate independently?
Yes, each of the four switches controls its own light or appliance.
Can sockets share the same phase as lights?
Yes, but connections must be properly rated for the load.
Is earthing necessary?
Yes, earth wires must connect to switch frame, lamp bodies, and socket terminals.
Can LED lights be used?
Yes, if switches and wiring support the load.
How to test the wiring?
Turn on supply and test each switch and socket individually.
What is the common terminal in a 4 gang switch?
It is the input phase terminal shared by all four switches.
Can multiple appliances run safely?
Yes, provided total load is within wiring and switch rating.
