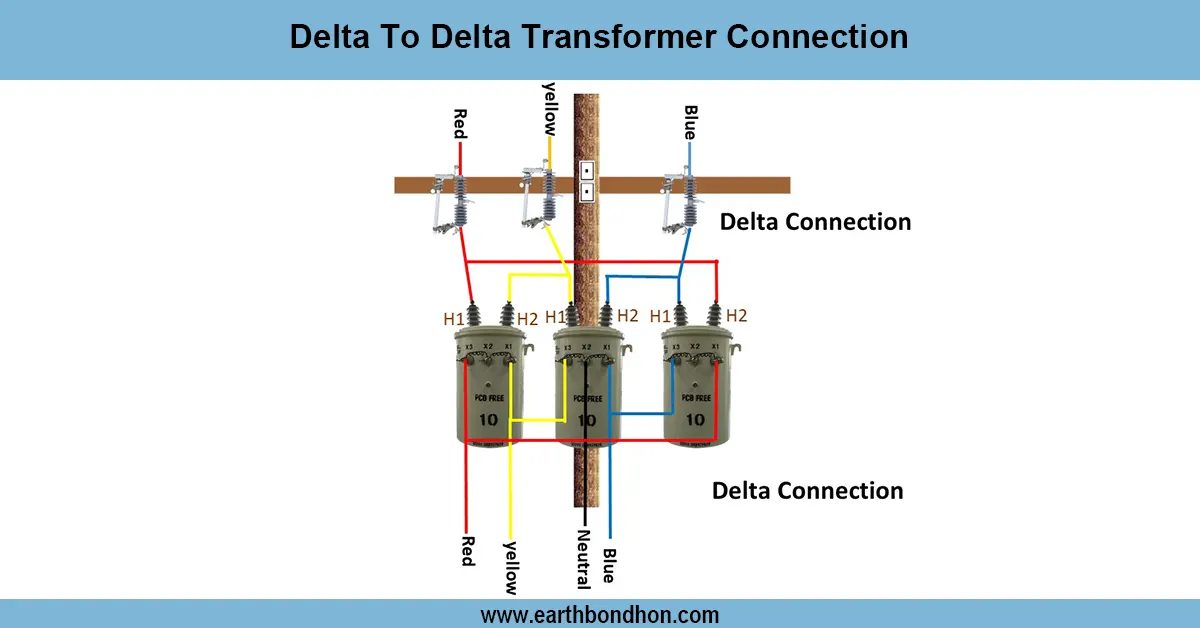

Delta to Delta transformer connection delta is connected on the primary and the secondary using delta wiring. This is a balanced three-phase voltage, with the advantage of reliable power distribution, and is commonly applied in industrial and motor load applications.
3-phase transformer delta connection
A typical transformer wiring configuration used in three-phase transformers with both primary and secondary windings in delta configuration is called a Delta to Delta transformer connection. The winding is in each instance a closed loop, and gives a line-to-line voltage between the terminals. A delta-delta transformer has two windings per line, which gives balanced loading. The connection is optimal with industrial loads, motor supply, and three-phase power distribution without the need to have a neutral. Delta-delta transformers are efficient in high starting currents of motors and in minimizing third-harmonic circulating problems in the system. Balanced voltage, proper phase sequence, and dependable transfer of three-phase power are achieved with proper wiring. Winding Tests include checking the winding connections, phase sequence, voltage ratios, and load balancing. Delta-delta transformers have found extensive application in industries, factories, and the distribution system.
Work & Installation (Input → Output Summary)
- Primary Delta Winding connects three line phases forming a closed loop.
- Secondary Delta Winding connects three output terminals in delta.
- Voltage Distribution: Line voltage appears across each winding; phase current divides through two windings.
- Load Connection: Industrial or motor loads connect to secondary delta terminals.
- Phase Sequence: Ensure correct phase sequence to avoid motor or load malfunction.
- Safety Devices: Use fuses, breakers, and earthing for protection.
- Proper wiring ensuresbalanced three-phase power, correct voltage ratio, and reliable operation.
Testing & Final Adjustments
- Verify insulation and winding connections on both primary and secondary sides.
- Measure line-to-line voltage and ensure it matches the expected transformer rating.
- Check phase sequence using the phase rotation meter.
- Inspect delta connections for secure terminals and proper continuity.
- Connect load gradually and monitor current balance across phases.
- Ensure there is no excessive heating of transformer windings.
- Test protection devices (fuses, breakers) for proper operation.
- Verify neutral is not required in the delta-delta setup.
- Record voltage, current, and load readings for reference.
- Confirm smooth operation under full load conditions without phase imbalance.
Frequently Asked Questions - delta-to-delta-transformer-wiring:
What is delta to delta transformer connection?
A three-phase transformer wiring where both primary and secondary windings are connected in delta.
Why use delta-delta connection?
It provides balanced voltage, handles high motor starting current, and avoids neutral requirement.
Can it supply 3-phase motors?
Yes, delta-delta transformers are ideal for motor loads and industrial equipment.
Is neutral required?
No, delta-delta connection does not require a neutral point.
How to check phase sequence?
Use a phase rotation meter to ensure correct rotation and avoid motor malfunction.
Can delta-delta handle unbalanced load?
Yes, but excessive imbalance may cause heating; proper load distribution is recommended.
What is the voltage relationship?
Line-to-line voltage appears across each winding; phase voltage is line voltage divided by √3 in delta.
Where is this connection used?
Industrial plants, motor supplies, and three-phase power distribution networks.
What protection is required?
Fuses, circuit breakers, and earthing for safe operation.
Can it be used for step-up or step-down?
Yes, depending on primary and secondary voltage ratings, delta-delta transformers can step-up or step-down voltage.
