Project with BC547 Transistor
Explore simple and effective electronics projects using the BC547 transistor. Ideal for hobbyists, students, and DIY circuits like LED flashers, amplifiers, and...

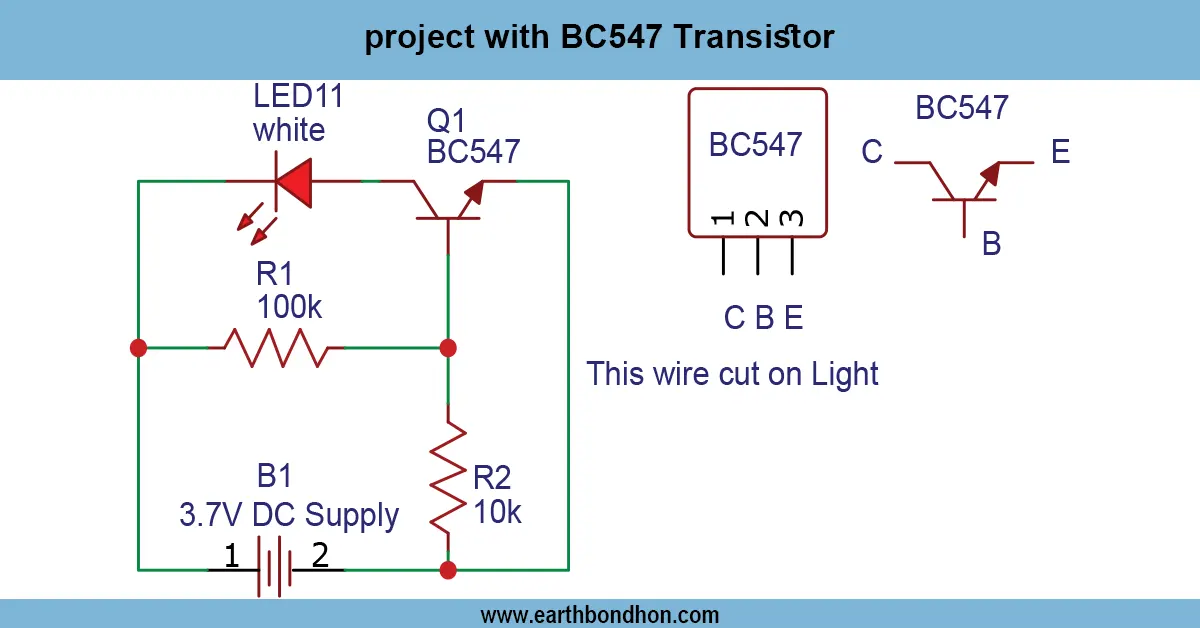

BC547 transistor DIY project
The transistor project is a BC547, which gives beginners the chance to construct simple electronics such as LED flashers, switches ,and smaller amplifiers. The NPN transistor regulates Current and Voltage in DIY versatile circuits.
mosfet cutoff circuit for over current protection
A glass-fused MOSFET overcurrent protection circuit is an electronics safety project that is necessary to ensure that devices are protected against too much current that might destroy the parts. In this DIY project, a glass fuse is used as the primary protection device that blows when the current is greater than some predetermined point, and a MOSFET is used as a fast electronic switch turn off the current in the case of overcurrent.
The construction also provides dual protection to the circuit, with the large overcurrents being dealt with by the use of glass fuses, whilst short-term spikes or fault conditions can be responded to by the MOSFET. This kind of glass fuse combination of MOSFET overcurrent protection circuit is perfect in power supply, battery-powered applications, DC-DC converters, and at-home electronic applications where delicate devices demand high-quality protection. The construction of this circuit provides some useful experience in the field of electronics, such as how to sense current, switch with a MOSFET, and select a fuse to make the required choice.
Glass Fuse + MOSFET Overcurrent Protection Circuit
Dual-layer protection using a fast MOSFET cutoff combined with a replaceable glass fuse — ideal for DC systems, battery packs, and DIY power electronics.
Advantages of Using Glass Fuses with MOSFETs
- Dual Protection: MOSFET handles fast spikes; glass fuse provides large-current cutoff.
- Improved Safety: Reduces risk of overheating or component damage.
- Resettable/Replaceable: Fuse is replaceable; MOSFET resets after fault is cleared.
- Compact Design: Suitable for DC circuits and battery systems.
- Cost-Effective: Uses common components and simple design.
Components Required
| Component | Quantity | Purpose |
|---|---|---|
| Glass Fuse (0.5A–10A) | 1 | Primary overcurrent protection |
| N-Channel MOSFET (IRFZ44N / similar) | 1 | Electronic switching / cutoff |
| Shunt Resistor (0.01–0.1Ω) | 1 | Current sensing |
| Op-Amp / Comparator (LM358 / LM393) | 1 | Detects overcurrent and drives MOSFET gate |
| Pull-up / Bias Resistors | Various | Comparator reference & gate control |
| Capacitors | Various | Filtering and stability |
| LED Indicator | 1 | Trip / fault indication |
| Power Supply (DC 5–24V) | 1 | Circuit power |
| PCB / Perfboard | 1 | Assembly |
Working Principle
Input Stage: Power flows through a glass fuse to the MOSFET/drain — the fuse protects against sustained high currents.
Current Sensing: A low-value shunt resistor measures load current. Vshunt = I × Rshunt.
Decision Stage: Comparator/op-amp monitors the shunt voltage and compares it to a reference. On overcurrent, the comparator drives the MOSFET gate to cut off current.
Load Protection: MOSFET disconnects the load quickly. If the fault persists, the glass fuse may blow and must be replaced.
Indicators & Reset: LED shows trip state. MOSFET typically resets when the fault clears or power cycles; fuse replacement may be needed for sustained faults.
Circuit Diagram (Text)
Power Input → [Glass Fuse] → MOSFET (Drain) MOSFET (Source) → Shunt Resistor → Load → Ground Shunt Voltage → Comparator (+) Reference Voltage → Comparator (−) Comparator Output → MOSFET Gate (via gate resistor) Comparator Output → LED (with series resistor)
Step-by-Step Construction Guide
- Install the glass fuse in series with the power input (use proper fuse holder).
- Wire MOSFET: drain after fuse, source to shunt/load ground as per topology.
- Place shunt resistor in series with load (low-ohm, high-power rated).
- Build comparator circuit: feed shunt voltage to comparator + input and set threshold on − input.
- Drive MOSFET gate from comparator through a gate resistor; add pull-down to keep gate low when idle.
- Add LED indicator on comparator output with current-limiting resistor.
- Test with incremental loads; verify MOSFET cuts off at the desired trip current and the fuse only blows on sustained faults.
Applications
- DC power supplies and battery protection
- Solar power and charge controllers
- DC–DC converters and LED drivers
- Robotics and motor protection
- General DIY electronics safety
Troubleshooting Tips
| Problem | Fix |
|---|---|
| MOSFET not turning off | Check comparator reference, gate resistor, and gate pull-down; confirm comparator output swings correctly. |
| Fuse blowing too soon | Verify fuse rating and wiring; check for shorts or inrush currents that require slow-blow fuse. |
| LED not lighting on trip | Check LED polarity and series resistor; verify comparator output state during trip. |
| Load receives partial voltage | Check shunt placement and wiring; ensure MOSFET orientation is correct and not partially conducting. |
| Circuit oscillating/unstable | Add input filtering capacitors and small RC filter at comparator input; add hysteresis to comparator. |
Want a full schematic (SVG/PNG) or a PCB-ready layout for this circuit? I can generate it—tell me your preferred MOSFET and shunt values and I’ll create the schematic.
Frequently Asked Questions - Project with BC547 Transistor:
What is BC547?
BC547 is an NPN general-purpose transistor.
What projects can I do?
LED flashers, light sensors, switches, amplifiers, motor control.
What voltage is required?
Typically 3–12V DC supply.
Is it beginner-friendly?
Yes, ideal for students and hobbyists.
Can it switch AC?
No, it is for low-voltage DC circuits.
Do I need resistors?
Yes, to limit current to base and load devices.
Can it drive motors?
Yes, small DC motors within current limits.
How many projects can be made?
Multiple, depending on combination with sensors and LEDs.
Is it safe for breadboard testing?
Yes, with low-voltage DC supply.
Applications?
Hobby electronics, DIY kits, learning transistor switching and amplification.
