Single-phase MCB Connection
Learn Single Phase MCB connection diagram with step-by-step wiring guide, installation, testing, and safety tips for home electrical systems.
electrical socket wiring

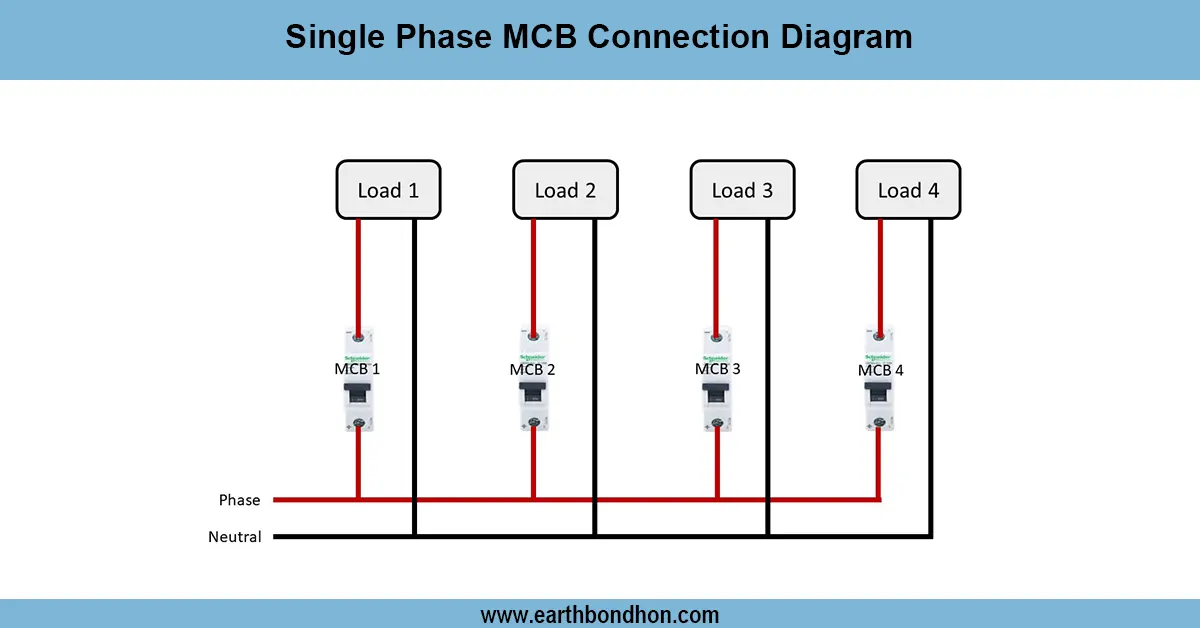

One phase of MCB connection diagram illustrates the flow of power between the energy meter and miniature circuit breaker and onward to loads such as lights, fans and sockets. It is also safe as it will cut off the supply in the event of overloads or short circuiting.
single pole MCB wiring tutorial:
It is important that a single phase Mcb connection diagram be known to understand the process of distributing and protecting electrical power both in residential and small commercial installations. The MCB (Miniature Circuit Breaker) is a protective device that prevents the occurrence of the overload, short circuits that may cause damage to the wiring or the appliances. Stock wiring system has power flowing through the energy meter into the MCB and then on to the distribution board and lastly on to the load circuits. Single pole (SP) MCB is connected to the live only, whereas the double pole (DP) MCB is connected to both live and neutral. It is also important that earthing and neutral busbar wiring is properly done. This arrangement makes the provision of electricity efficient and safe to lighting, sockets, and appliances. Electrical diagrams are clear enough to enable electricians and house owners to make proper installations to prevent accidents. Regardless of whether you are upgrading the wiring in your house or you are designing a new system, adherence to one phase of MCB connection diagram will guarantee you the adherence to the electric standards and durability of the wiring.
Work & Installation (Input to Output,)
In a normal installation, the energy supply to the house enters the house via the single-phase energy meter. Based on meter, the phase and neutral lines are channeled into the MCB. In the case of an SP MCB the live wire is passed only, and the neutral is connected straight to the busbar. With DP MCB, the phase and neutral are switched simultaneously and this provides additional safety. The circuit leads to the distribution board which leads to branch MCBs that supply individual loads in the form of lighting, sockets and appliances. Earthing is tied in all over to avoid electric shock and a safe conduit of discharge. Proper wiring, color coding and tightening of terminals are important in ensuring reliability in the long run.
Testing and Final Adjustments
When installed it should be systematically tested. The continuity of the phase, neutral and earth wiring should be checked first to test correct connections. Test the insulation resistance next, to make sure that there is no leakage between conductors. Turn the main MCB on and ensure that, the voltage is getting to each distribution point as appropriate. Test each circuit MCB by using appliances to test whether they are functioning correctly. When there is an overload, the MCB must trip instantly thereby proving that it is in operation. Lastly, test the earthing system by measuring the earth resistance to ensure that the resistance is not too high. Terminals must be closed so that they do not spark or overheat. After the testing has been done label each MCB depending on the load (lights, sockets, geyser, AC). This guarantees easy identification in the course of maintenance. A single phase MCB connection is a guarantee of a safe and efficient distribution of electricity in a home with proper installation and testing.
Frequently Asked Questions - Single-phase MCB Connection:
What is a single phase MCB?
A miniature circuit breaker used in single phase systems to protect against overload and short circuits.
How to connect a single phase MCB?
Connect the phase wire through the MCB and neutral to the busbar, then output to load circuits.
What is the difference between SP and DP MCB?
SP MCB switches only phase, while DP MCB switches both phase and neutral.
Why is MCB important?
It prevents damage from overloads and short circuits by disconnecting power.
Can I use SP MCB for home wiring?
Yes, SP MCB is commonly used for small loads, but DP MCB is safer for main input.
How do I test an MCB connection?
Check continuity, voltage at output, and simulate overload to verify tripping.
What is the ideal MCB rating for a house?
Typical ratings are 6A–32A depending on load, with 32A often used for main supply.
Does MCB replace a fuse?
Yes, MCB serves as a modern alternative to fuses with resettable tripping.
Where should the earth wire be connected?
Earth wire connects to the earthing terminal or busbar linked to ground rod.
What is the lifespan of an MCB?
A good quality MCB lasts 10–15 years depending on usage and load conditions.
