single phase Motor Capacitor Connection
Learn single-phase motor connection with a capacitor, including start/run capacitor wiring, correct rotation, DP switch/MCB protection, and safe installation.
electrical socket wiring
A one-phase motor connection with a capacitor is an example of the wiring in the supply phase and the neutral to the motor with the start/run capacitor and the protective DP switch to operate safely.
single phase motor with capacitor wiring:
Capacitors can be used in starting or running single-phase motors. This electrical diagram illustrates how to supply a capacitor to a single-phase motor to ensure it operates correctly. The supply has a phase and neutral, which are linked to the terminals of the motor through a DP switch or MCB as a safety measure. The capacitor may be a start capacitor, which is temporarily connected on start-up, or a run capacitor, permanently connected in the circuit to enhance efficiency and torque. The choice of the capacitors is critical, as otherwise, the motor will not start or will not work with high efficiency. The safety requires the earthing of the frame of the motor and switchboard. This design is generally used in ceiling fans, pumps, compressors, and small domestic machinery. The existence of a clear diagram assists electricians and DIYers in installing the capacitor with the motor correctly, which would make it safe, reliable, and efficient.
switch wiring diagram
- Input Supply: Phase and neutral wires from the main line.
- DP Switch / MCB: Installed to isolate both phase and neutral safely.
- Motor Terminals: Connect main winding to phase and neutral.
- Capacitor Connection: 1. Start Capacitor: Connected in series with auxiliary winding and disconnected after startup using a centrifugal switch or relay. 2. Run Capacitor: Connected permanently in series with the auxiliary winding to improve torque and efficiency.
- Earthing: Motor frame and switchboard grounded properly.
- Output: Motor operates efficiently with correct starting torque and safe running conditions.
Testing & Final Adjustments
It should also be noted that all connections should be tight and correct after wiring. Switch on the main supply with the help of the DP switch and ensure that the motor comes on smoothly. In the case of the start capacitors, make sure that they are disconnected after a few seconds when the motor is running. With run capacitors, ensure that they are in line, and they assist the motor to run efficiently. Check the voltage at the motor terminals, which must be equal to the supply voltage (220 V -240 V). Test against abnormal noises, vibration, or overheating. Earthing is to be used to avoid electric shock. Clamp loose connections and ensure insulation is safe. Label the DP switch, motor, and capacitor terminals so that they can be easily identified. Such checks guarantee that the motor is working safely, efficiently, and reliably.
Frequently Asked Questions - single phase Motor Capacitor Connection:
Why use a capacitor in single phase motor?
It provides starting torque and/or improves running efficiency.
What is the difference between start and run capacitor?
Start capacitor is temporary for startup; run capacitor stays in the circuit.
Can motor run without a capacitor?
Some motors can, but efficiency and starting torque will be reduced.
How to connect a start capacitor?
In series with auxiliary winding and disconnected via centrifugal switch after startup.
How to connect a run capacitor?
Permanently in series with the auxiliary winding for continuous operation.
Is earthing necessary?
Yes, it ensures safety and prevents electrical hazards.
Can I use DP switch for motor isolation?
Yes, a DP switch isolates both phase and neutral safely.
What happens if capacitor is wrong rating?
Motor may fail to start, overheat, or run inefficiently.
Where to place capacitor in wiring?
Between phase and auxiliary winding of the motor.
Can I test capacitor with a multimeter?
Yes, using capacitance mode to check its value before wiring.
Related Posts
Emergency Stop Button in Alarm
Learn emergency stop flash wiring with an alarm to signal machine shutdown, ensuring operator safety and alerting personnel during emergency stops.
Differential switch wiring diagram
Learn how to control two lights from three places using ladder wiring with two-way and four-way switches for safe and efficient operation.
Auto timer for Water Pump
Learn the wiring of a fully automatic water level controller for pump operation, including float switches, relay, MCB, and indicators for safe, automated water management.

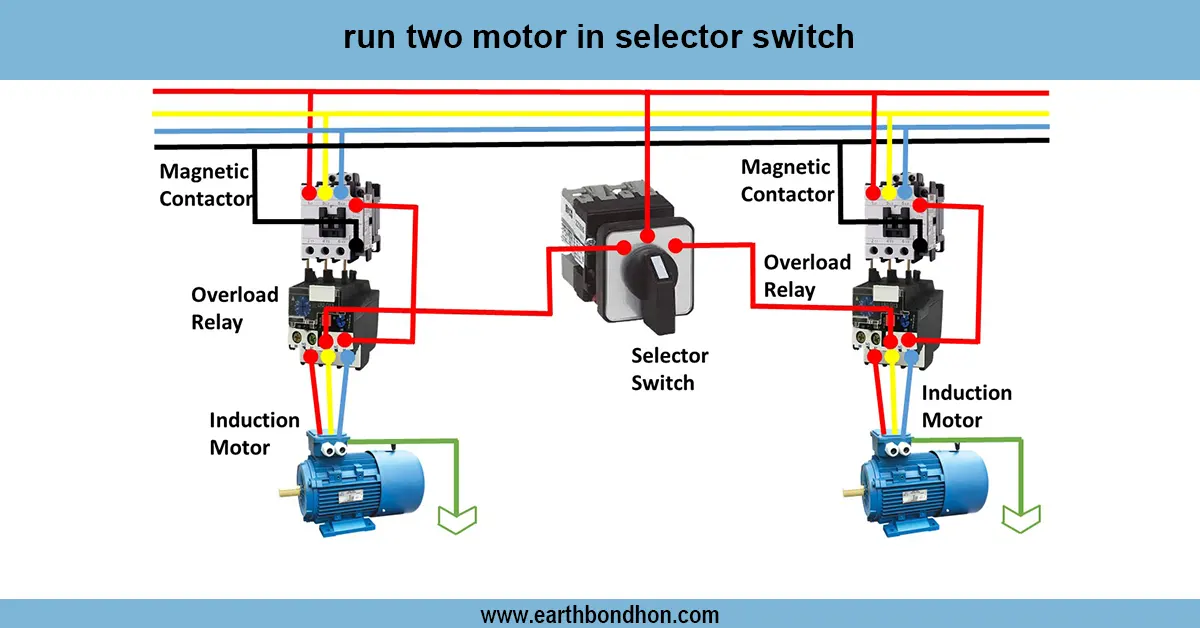

Run two motor in selector switch
