Fluorescent Light Wiring
Learn fluorescent tube light wiring with an electrical choke (ballast) for proper starting, stable operation, and long life of the tube lamp.
electrical choke tube light wiring
Electrical choke wiring of fluorescent tube lights will guarantee the correct regulation of current flow and easy start-up. Proper connections of line, neutral, choke, and starter ensure lamp life and eliminate flickering.
tube light electrical schematic
Fluorescent tube light with electrical choke wiring describes the arrangement of a magnetic ballast (choke) and starter to a fluorescent tube lamp. The wiring offers appropriate starting and stable operation of the tube. The one end of the tube is connected to the line via the choke and starter, and the other end to neutral. The starter is used to make the lamp discharge, and the choke is used to restrict the current to avoid ruining the tube. The correct wiring incorporates line, neutral, tube lamp, starter, and choke connections to have a safe operation, less flickering, and longer lamp life. The fluorescent tube wiring finds a large usage in residential, commercial, and industrial lighting. There is testing that entails turning ON the tube, checking to ensure that it starts properly, and also checking whether it flickers. This arrangement will guarantee effective use of energy and avoid electrical risks of improper connections.
Work & Installation (Input → Output Summary)
- AC Supply (Line & Neutral) connects to tube light circuit.
- Electrical Choke (Ballast) connects in series with line to limit current.
- Starter is connected parallel to the tube lamp for ignition.
- Fluorescent Tube Lamp terminals connect to choke, starter, and neutral.
- On powering ON, starter preheats tube filaments, then lamp strikes and glow begins. Then the lamp strikes and the glow begins.
- Choke stabilizes current during operation to prevent flickering and overheating.
Testing & Final Adjustments
- Verify all wiring connections: line, neutral, tube lamp, starter, and choke.
- Switch ON the tube light; it should start with a brief flicker, then glow steadily.
- Ensure no overheating of choke or starter during operation.
- Test multiple ON/OFF cycles to confirm proper starting.
- Inspect terminals for secure and insulated connections.
- Verify that replacing the starter or tube lamp restores normal operation.
- Check for flickering; if present, recheck choke and starter connections.
- Ensure wiring follows electrical safety standards.
- Avoid connecting a tube lamp directly to the mains without a choke to prevent damage.
- Record observations for maintenance and operational safety documentation.
Frequently Asked Questions - Fluorescent Light Wiring:
What is an electrical choke?
A magnetic ballast used to limit current to a fluorescent tube lamp.
Why use a starter?
To preheat filaments and initiate tube lamp discharge.
How is the tube lamp wired?
Line through choke and starter to one end; neutral to the other end.
Can I run tube lamp without choke?
No, it can burn out due to uncontrolled current.
Is flickering normal?
A brief flicker on startup is normal; continuous flicker indicates faulty wiring or starter.
How to test tube light wiring?
Switch ON power and verify lamp starts and glows steadily without flicker.
Can this wiring be used for 2 or 4-foot tubes?
Yes, using appropriate choke and starter ratings.
Is earthing required?
Yes, for metal tube fixtures to ensure safety.
Can I replace starter with electronic starter?
Yes, it provides smoother startup and reduces flickering.
What is the role of choke during operation?
Limits current to prevent tube lamp overheating and ensures stable light output.
Related Posts
timer and contactor circuit diagram
Learn the maneuver timer in a 2-contactor wiring diagram with input, output, and control circuit connections for safe motor operation and switching.
Ceiling Fan Regulator connection
Wiring diagram showing how to connect a two way switch with a regulator to control ceiling fan speed and ON/OFF from two locations.
Single Phase Motor Changeover Connection With Diagram
Learn single-phase motor changeover connection with wiring diagram, step-by-step installation, DP switch or MCB selection, and safe operation for home motors.

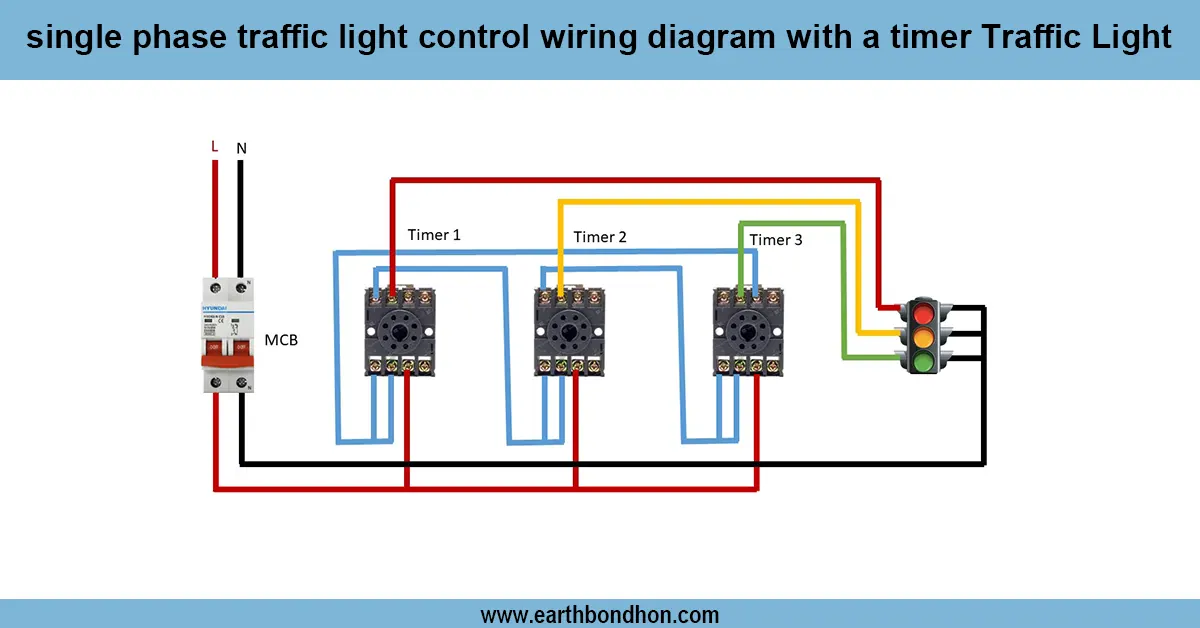

single-phase Traffic Light Control Wiring
Learn single-phase traffic light control wiring with a timer, including DP switch/MCB, phase, neutral, timer relay, and safe installation for automated signal operation.
3 Phase Motor Forward Reverse wiring
Understand the 3 phase motor reverse forward starter power wiring with detailed diagram and instructions for safe and efficient motor direction control.

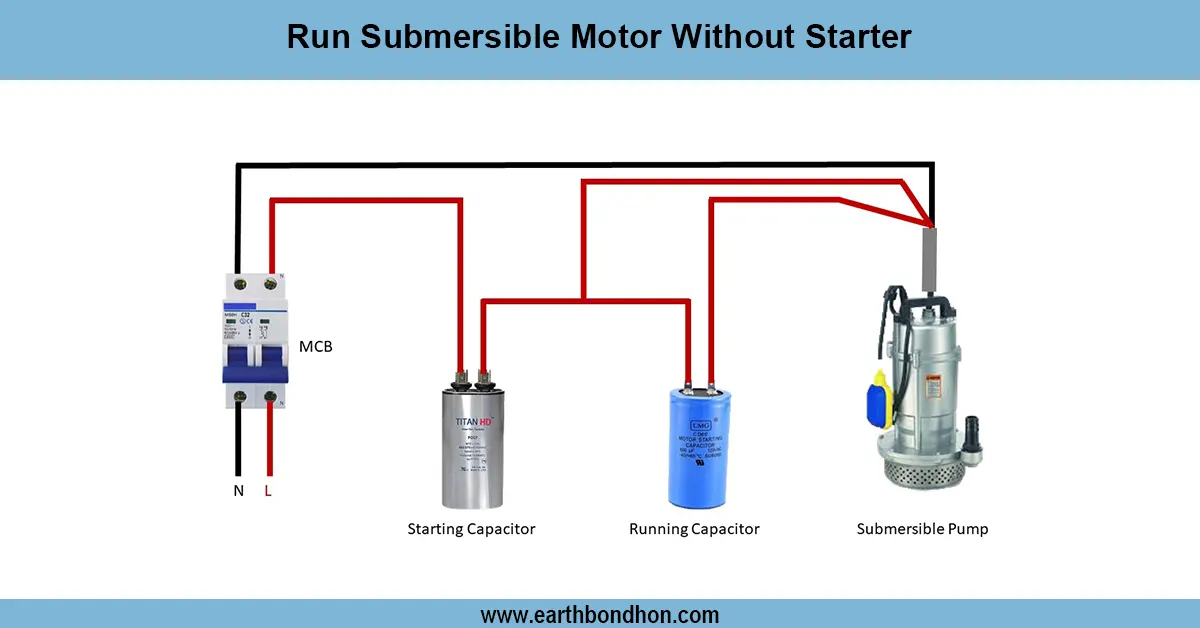

Submersible Pump Wiring
