Series Parallel Switch Wiring Diagram
Learn to wire a series-parallel switch board for motors or loads, including control switches, contactors, protection, and safe operation for efficient use.
motor control series parallel diagram

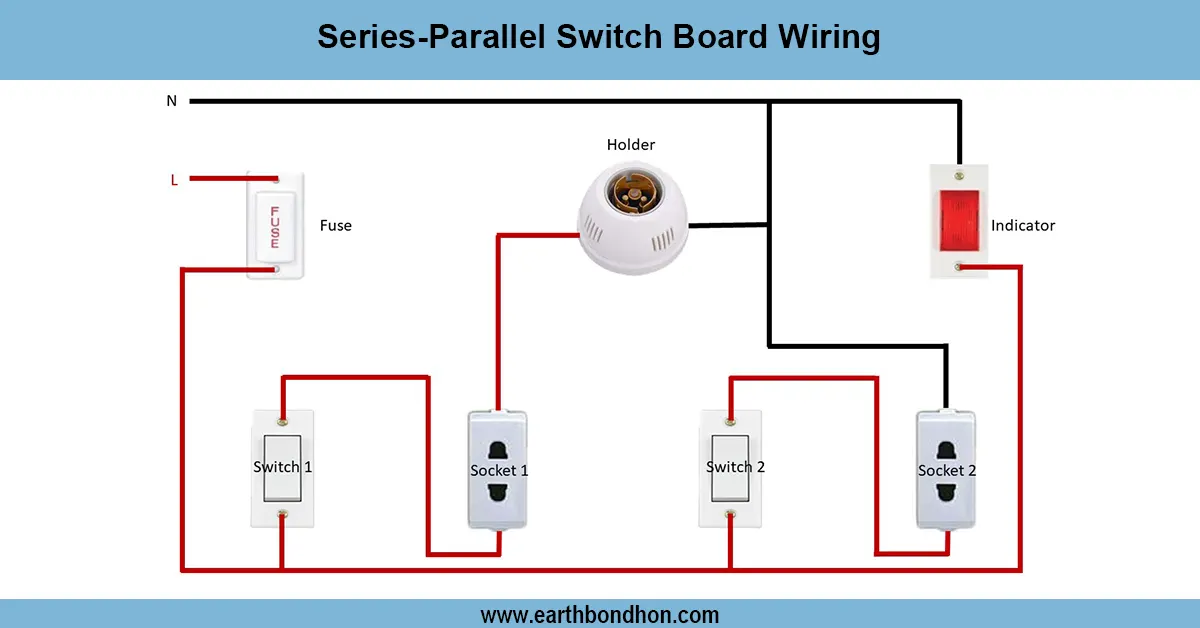

A series-parallel switch board constitutes a series-parallel switch board which enables motors or loads to be used in series (reduced voltage) or in parallel (full voltage). Wiring and protection are good to allow safe and efficient working.
safe motor series parallel wiring
The Series-Parallel Switch Board can be used to operate motors or loads either in series or parallel, as the needs arise. In series mode, they supply a lower voltage to the motors or loads, and in parallel, full supply voltage to the load. The board is provided with a selector switch to select the mode, contactors, MCBs, fuses, and overload relays to provide protection. The wiring includes the process of linking the supply coming in with the main switch, running lines through the series-parallel switch, and connecting to the motor or load terminals. Safety in operations is guaranteed by the proper marking of series and parallel positions. Other push buttons or start/stop switches can be added to have easier control. Testing entails ensuring that the mode switching is accurate, such that voltage is applied to the motors or loads without short-circuiting or overloading. This design is also typically applicable in industrial projects such as conveyor belts, multi-motor configurations, or variable load systems in order to save energy.
Work & Installation Summary
- Connectincoming supply to the main switch of the board.
- Mountseries-parallel selector switch, contactors, MCBs, and overload relays.
- Route supply lines throughselector switch to motor/load terminals.
- Installfuses or MCBs for each motor/load for protection.
- Label positions forseries and parallel mode.
- Add optionalstart/stop push buttons for each motor/load.
- Ensure proper insulation and tight connections.
- Test selector switch to confirm voltage changes correctly between series and parallel.
- Verify overload relays or fuses operate properly.
- Document wiring and operational instructions for maintenance.
Testing & Final Adjustments
- Check incoming supply voltage and connections.
- Verify continuity from main supply through selector switch to motor/load terminals.
- Test series mode: motors/loads should receive reduced voltage.
- Test parallel mode: motors/loads should receive full voltage.
- Confirm overload relays or fuses trip correctly under simulated overload.
- Inspect wiring for tight connections and proper insulation.
- Verify start/stop push button operation if used.
- Check selector switch positions selector switch positions correspond to correct voltage mode.
- Monitor motor/load performance under both modes.
- Document wiring diagram and operational notes for future reference.
Frequently Asked Questions - Series Parallel Switch Wiring Diagram:
What is a series-parallel switch board?
A board that allows motors or loads to operate in series or parallel mode.
Why use series mode?
Series mode reduces voltage to motors or loads for controlled operation.
Why use parallel mode?
Parallel mode provides full supply voltage for normal operation.
Is protection required?
Yes, MCBs, fuses, and overload relays prevent damage and overload.
How is the selector switch connected?
Incoming supply passes through the selector switch to motor/load terminals.
Can push buttons be added?
Yes, start/stop buttons can provide manual control for each motor/load.
Where is this used?
Industrial setups with multiple motors or loads requiring voltage control.
How to test wiring?
Switch between series and parallel modes and measure voltage at terminals.
Is labeling necessary?
Yes, series and parallel positions must be clearly marked for safety.
Can multiple motors share the same board?
Yes, but each motor should have proper protection and load balancing.
